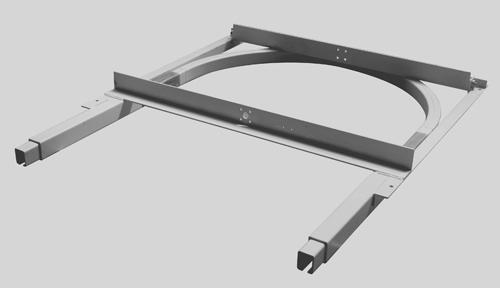

12 inch Travel Framed Take-Up Assembly

Supplier: Richards-Wilcox

Richards-Wilcox 12" inch Travel Framed Take-Up Assemblies (Model 2035-01687) are built and ready to be hoisted and hung onto your existing conveyor system, without having to disrupt productivity.

Take-Up Assembly Overview

  • Frame provides a rigid base for positive alignment
  • Permanently mounted frame, only the actuator and conveyor move
  • Tensioning is accomplished with your choice of screw, spring or air cylinder packages listed below
  • Available for 2'–0" R curves (4' maximum track spread)
  • Finished with Richards-Wilcox powder coating

Some type of tensioning is necessary on all Zig-Zag conveyor systems to take up slack chain created by wear or temperature changes. In addition to the factory made versions described, Richards-Wilcox makes screw take-up fittings for field assembly.

NOTE: Complete unit consists of one frame and one set of hardware for screw, spring or air take-up.

  • Model Info

4 models for 12 inch Travel Framed Take-Up Assembly

  • Prices subject to change without notice

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by clicking the red button below.

Model No. Description Price Ea. Qty
2035-01687 12" inch. travel Framed Take-Up Assembly Call for Pricing
2035-01700 Optional Air Cylinder Package Call for Pricing
2035-02685 Optional Screw Package Call for Pricing
2035-02686 Optional Spring Package Call for Pricing
All items in RED ship express from our warehouses.
