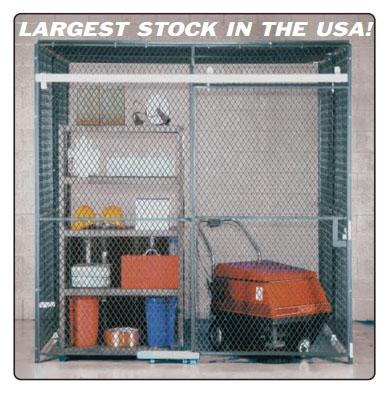

Partitions - 1.5 inch Diamond Mesh

Supplier: Jesco

FOB: Midwest Warehouse
Standard Color: Dark Gray


Wire mesh partitions are pre-engineered for easy installation allowing unrestricted visibility and total air circulation.

Low initial cost and maintenance.

Partitions are provided complete with galvanized top cap. Anchors optional.

Ceiling (non load bearing) adds to overall height.

Standard color is dark gray.

Technical Data:

  • Mesh: 1-1/2" diamond woven wire mesh, 10 gauge
  • Frame: 1-1/4" x 5/8" channel
  • Corner Angle: 1-1/4" x 1-1/4" x 1/8"
  • Channel Line Post: 4" Formed
  • Cap Channel: Galvanized
  • Hardware: Zinc Plated
  • Sweep Space: 2-1/2"
  • Model Info

15 models for Partitions - 1.5 inch Diamond Mesh

  • Prices subject to change without notice

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by clicking the red button below.

Model No. Width Weight Price Ea. Qty
300101 1' W x 7' H 16 lbs. $119.00
300102 2' W x 7' H 24 lbs. $144.00
300103 3' W x 7' H 31 lbs. $166.00
300104 4' W x 7' H 39 lbs. $188.00
300105 5' W x 7' H 46 lbs. $213.00
300107 1' W x 8' H 18 lbs. $132.00
300108 2' W x 8' H 26 lbs. $158.00
300109 3' W x 8' H 35 lbs. $184.00
300110 4' W x 8' H 43 lbs. $206.00
300111 5' W x 8' H 51 lbs. $231.00
300119 1' W x 10' H 22 lbs. $162.00
300120 2' W x 10' H 32 lbs. $192.00
300121 3' W x 10' H 41 lbs. $222.00
300122 4' W x 10' H 51 lbs. $250.00
300123 5' W x 10' H 60 lbs. $282.00
All items in RED ship express from our warehouses.

6 Options Available for Partitions - 1.5 inch Diamond Mesh

Accessories for Wire Partition Systems

Channel Line Posts - Used as stiffener every 15 ft.

Fill-a-Space Panels - Adjusts from 2" to 12". Used to fill odd size spaces.

Wall Clip - Required for each wall connection.
Adjustable Wall Clip - Allows up to 1" of adjustment.
Three-Way Clips - Required when 3 panels meet.
Model No. Description Height Weight Price Ea. Qty
301281 Adjustable Corner Angle 7' 11 lbs. $78.00
301282 Adjustable Corner Angle 8' 13 lbs. $84.00
301284 Adjustable Corner Angle 10' 16 lbs. $93.00
301271 Corner Angle 7' 7 lbs. $42.00
301272 Corner Angle 8' 8 lbs. $45.00
301274 Corner Angle 10' 10 lbs. $52.00
301251 Channel Line Posts 7' 14 lbs. $62.00
301252 Channel Line Posts 8' 16 lbs. $69.00
301254 Channel Line Posts 10' 19 lbs. $75.00
301301 Fill-A-Space-Panels 7' 19 lbs. $105.00
301302 Fill-A-Space-Panels 8' 22 lbs. $114.00
301304 Fill-A-Space-Panels 10' 27 lbs. $127.00
301361 Wall Clips (3pcs) -- .40 lbs. $22.15
301362 Adjustable Wall Clips (3pcs) -- .65 lbs. $22.30
301363 Three-Way Clips -- .82 lbs. $22.40

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by click the red button bellow.

Partitions - 1.5 inch Diamond Mesh Option Image

Sliding Doors

Single sliding doors fits most needs. Slide doors are mounted outside of enclosure and close right. Track set comes complete with guides and stops.

  • Doors are mounted outside
  • Closes to the right or left
  • Allow 1' from corner
  • Padlock lugs are standard.
    Track adds 6" to height on full height doors
    Shipped Knocked Down
Model No. Description Height Width Weight Price Ea. Qty
391101 Full Height Sliding Doors - No Transom 8' 3' 80 lbs. $478.00
391151 Full Height Sliding Doors - No Transom 8' 4' 99 lbs. $537.00
391161 Full Height Sliding Doors - No Transom 8' 5' 113 lbs. $601.00
391171 Full Height Sliding Doors - No Transom 8' 6' 135 lbs. $642.00
391201 Full Height Sliding Doors - No Transom 8' 8' 172 lbs. $752.00
391251 Full Height Sliding Doors - No Transom 8' 10' 201 lbs. $835.00
391271 Full Height Sliding Doors - No Transom 10' 3' 97 lbs. $592.00
391281 Full Height Sliding Doors - No Transom 10' 4' 121 lbs. $669.00
391301 Full Height Sliding Doors - No Transom 10' 5' 138 lbs. $744.00
391351 Full Height Sliding Doors - No Transom 10' 6' 164 lbs. $798.00
391391 Full Height Sliding Doors - No Transom 10' 8' 204 lbs. $935.00
391401 Full Height Sliding Doors - No Transom 10' 10' 247 lbs. $1,038.00

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by click the red button bellow.

Partitions - 1.5 inch Diamond Mesh Option Image

Hinged Doors

Standard doors are hinged left - swing out, but can be reversed to hinged right - swing in. Standard height is 7'. Transoms are used with 8' or 10' doors. Doors are complete and ready to install.

Standard doors are hinged left-swingout, but can be reversed to hinged right-swing in.

Padlock lugs are standard.

Shipped Knocked Down

Model No. Description Width Weight Price Ea. Qty
391611 1' Transom 3' 80 lbs. $391.00
391641 1' Transom 4' 94 lbs. $430.00
391631 3' Transom 3' 90 lbs. $417.00
391661 3' Transom 4' 107 lbs. $460.00

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by click the red button bellow.

Partitions - 1.5 inch Diamond Mesh Option Image

Dutch Doors

All doors are 7'H and 3'W, hinge left swing out. 8' and 10' doors with transom. Service shelf is 8"W.

Comes complete and ready to install.

Service shelf is 8" deep. Padlock lug standard.
Shipped Knock Down

Model No. Description Width Weight Price Ea. Qty
391711 1' Transom 3' 87 lbs. $592.00
391731 3' Transom 3' 96 lbs. $621.00

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by click the red button bellow.

Partitions - 1.5 inch Diamond Mesh Option Image

Service Window

Service window can be secured open or closed. Slide up windows are factory installed. Opening is 24"W x 20"H. Can be secured open or closed. Shelf is shipped K.D.

  • Factory Installed
  • Panel is extra
  • Service shelf is 8" deep
Model No. Dimensions W x H Weight Price Ea. Qty
390602 4' x 8' 95 lbs. $675.00
390603 4' x 10' 105 lbs. $686.00

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by click the red button bellow.

Partitions - 1.5 inch Diamond Mesh Option Image

Drop Shelf

Drop shelf can be secured open or closed.
Panel is extra.
Factory installed
Model No. Dimensions W x H Weight Price Ea. Qty
300377 24" W x 15" H 34 lbs. $419.00
