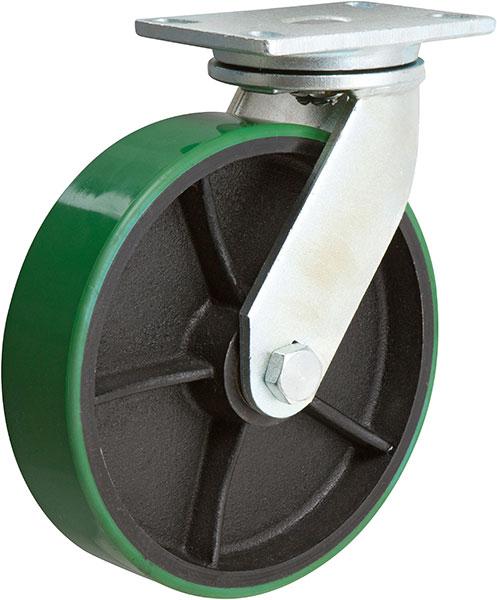

Stromberg STP7100 Series Heavy Duty Drop Forged Swivel Caster

STP7100 Series Heavy Duty Drop Forged Swivel Casters

Supplier: Stromberg

FOB: West Coast Warehouse
Lead time: 2-5 days

Stromberg STP7100 Series Heavy Duty Drop Forged Swivel Casters offer:

  • Finish: Bright zinc plating
  • Top plate: 3/8" AISI 1045 drop forged steel for maximum strength
  • Swivel: Double ball bearing coined "deep groove" load and machined component trust raceway
  • Fork spacing: 3"
  • Legs: 23/64" steel, machine welded, engineered and formed to resist bending
  • Kingpin: 3/4" diameter bolt and nut
  • Grease fittings: Zerk in swivel section
  • Axle: 3/4" diameter axle with lock nut


Applications:

  • Cargo containers
  • Freight terminal trucks
  • Textile carts and storage racks
  • Trash containers
  • Heavy duty platform trucks
  • Model Info

16 models for STP7100 Series Heavy Duty Drop Forged Swivel Casters

  • Prices subject to change without notice

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by clicking the red button below.

Model No. Fastening Type Fastening Size Overall Height Wheel Diameter Tread Width Wheel Type Wheel Bearing Load Capacity Swivel Radius Price Ea. Qty
STP7140-01-PCI Top Plate 4-1/2" x 6-1/4" 5-5/8" 4" 2-3/4" Polyurethane / Cast Iron Roller 1500 lbs. 3-7/16" $93.00
STP7160-01-PCI Top Plate 4-1/2" x 6-1/4" 7-1/2" 6" 2-1/2" Polyurethane / Cast Iron Roller 1600 lbs. 5-1/4" $108.00
STP7160-01-PHN Top Plate 4-1/2" x 6-1/4" 7-1/2" 6" 2-1/2" Phenolic Roller 1600 lbs. 5-1/4" $99.00
STP7160-01-RCI Top Plate 4-1/2" x 6-1/4" 7-1/2" 6" 2-1/2" Rubber / Cast Iron Roller 700 lbs. 5-1/4" $100.00
STP7160-01-STL Top Plate 4-1/2" x 6-1/4" 7-1/2" 6" 2-1/2" Steel Roller 1600 lbs. 5-1/4" $103.00
STP7160-01-SDI Top Plate 4-1/2" x 6-1/4" 7-1/2" 6" 2-1/2" Ductile Iron Roller 340 lbs. 5-1/4" $90.00
STP7180-01-PCI Top Plate 4-1/2" x 6-1/4" 10-1/8" 8" 2-1/2" Polyurethane / Cast Iron Roller 2000 lbs. 6-1/4" $116.00
STP7180-01-PHN Top Plate 4-1/2" x 6-1/4" 10-1/8" 8" 2-1/2" Phenolic Roller 2000 lbs. 6-1/4" $103.00
STP7180-01-RCI Top Plate 4-1/2" x 6-1/4" 10-1/8" 8" 2-1/2" Rubber / Cast Iron Roller 850 lbs. 6-1/4" $104.00
STP7180-01-STL Top Plate 4-1/2" x 6-1/4" 10-1/8" 8" 2-1/2" Steel Roller 1800 lbs. 6-1/4" $113.00
STP7180-01-SDI Top Plate 4-1/2" x 6-1/4" 10-1/8" 8" 2-1/2" Ductile Iron Roller 4000 lbs. 6-1/4" $98.00
STP7110-01-PCI Top Plate 4-1/2" x 6-1/4" 11-7/8" 10" 2-1/2" Polyurethane / Cast Iron Roller 2200 lbs. 7-9/16" $128.00
STP7110-01-PHN Top Plate 4-1/2" x 6-1/4" 11-7/8" 10" 2-1/2" Phenolic Roller 2500 lbs. 7-9/16" $116.00
STP7110-01-RCI Top Plate 4-1/2" x 6-1/4" 11-7/8" 10" 2-1/2" Rubber / Cast Iron Roller 950 lbs. 7-9/16" $117.00
STP7110-01-STL Top Plate 4-1/2" x 6-1/4" 11-7/8" 10" 2-1/2" Steel Roller 2000 lbs. 7-9/16" $128.00
STP7110-01-SDI Top Plate 4-1/2" x 6-1/4" 11-7/8" 10" 2-1/2" Ductile Iron Roller 4000 lbs. 7-9/16" $109.00
All items in RED ship express from our warehouses.
