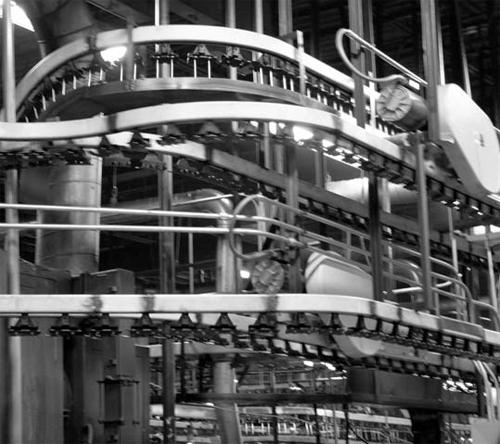

Zig-Zag Monorail Enclosed Track Conveyors

Supplier: Richards-Wilcox

Richards-Wilcox Zig-Zag Monorail Enclosed Track Conveyors are some of the most efficient and economical enclosed track conveyors for any large warehouse or distribution center. These enclosed track conveyors are also often regarded as the best problem-solving conveyors — from simple, in-line finishing systems to complex storage and retrieval systems.


Straight Track

– 3/16" thick.
– Heaviest in the industry.
– Stocked in 10' lengths.
  • Welding Fixtures

Horizontal Curves

– 3/16" thick.
– 90° flame hardened

Top Vertical Curves

– 3/16" thick.
– 90°, flame hardened.

Bottom Vertical Curves

– 3/16" thick.
– 90°, flame hardened.

Convevor Chain

– 6" pitch.
  • Take-up Assembly
  • Inspection Section
  • Chain Oiler.
  • Standard Drive Packages.
  • Load Pendant Attachments.

• Enclosed track.

– Protects product from contamination that typically falls from open chain conveyors.

• Protects the chain from airborne dirt, abrasives and solvents, prolonging chain life.

• Constructed of standard, modular components.

– guarantee easy installation, modification and maintenance.

• Standard components also guarantee quick accessibility through local stocking distributors.

• Zig-Zag chain has a pitch of 6" and is shortest in the industry.

– Allows up to 33% more productivity.
– Pitch of our chain allows you to space load pendants closer with less wheel loading.
– Allows for more product throughput.
– Shorter pitch also allows for tighter radius horinzontal curces.

• Standard 1'-6" horizontal and 2'-0" vertical curves can make tight changes in direction and elevation.

– Frees up valuable floor space for other assembly and storage operations.

• Designed to meet manufacturers' changing needs.

– It is the only overhead chain conveyor that can be upgraded to a power and free system utilizing all existing components.

• Reduces Product Damage because Zig-Zag conveyor can transport product anywhere, product handling and damage are kept to a minimum.
• 75 lbs per load
• Standard drive packages up to 750 lb. chain pull

• Paint Finishing Systems
• WIP Buffer Systems
• Investment Casting
• Progressive Assembly
• Trash Conveyors
• Tote Handling
• Die Cast Rack Storage
• Empty Carton Return
• Plating Rack Storage
• Sliver Can Delivery
• Robotic Interface

  • Model Info

1 model for Zig-Zag Monorail Enclosed Track Conveyors

  • Prices subject to change without notice

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by clicking the red button below.

Model No. Price Ea. Qty
ZigZag Call for Pricing
